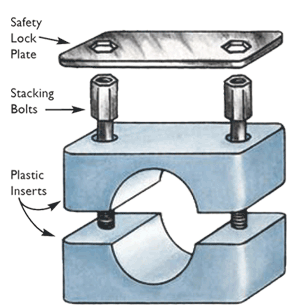

Industrial Clamp Drawing Downloads Click here for more info: Configurable 3D & 2D Drawings/Models Behringer Webinars Click here for more info: Behringer's Product Specific Webinars Behringer Interchange Elements Click here for Behringer's Interchange Elements:	Stacking Kit Size Range: Any double combination of sizes 1/4" outside diameter through 3.5" outside diameter. Material: 304 Stainless, 316 Stainless or Electro-Zinc Plated Carbon Plastic Inserts: Polypropylene (blue) up to 212° F Santoprene (tan) up to 302° F Thermal Expansion Guide: (Optional) Provides for axial expansion of the tube or pipe due to thermal expansion. One set of two per clamp (See Here) Thermal Expansion Guide Material: Santoprene, 1/16" insert, Black for service identification
